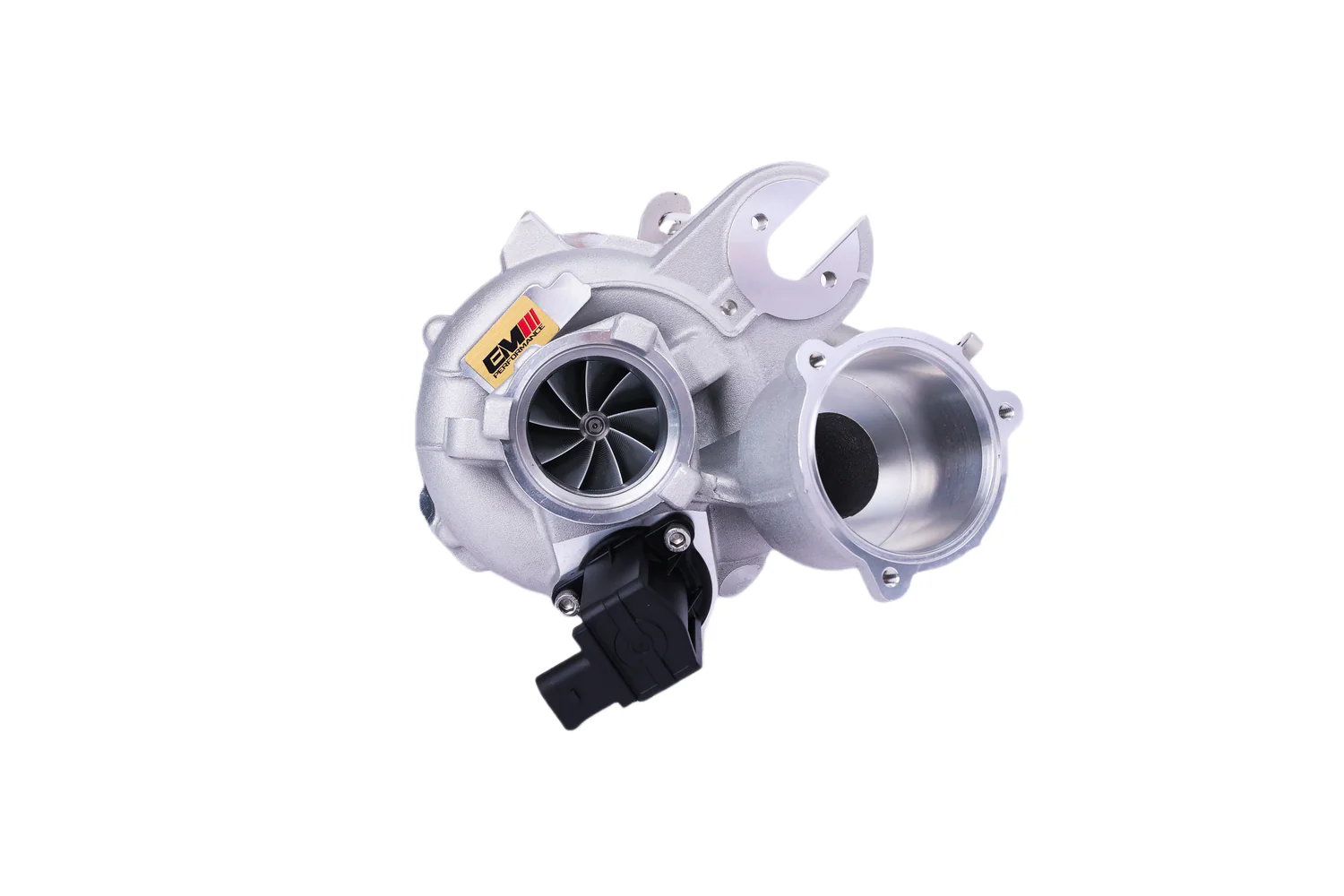

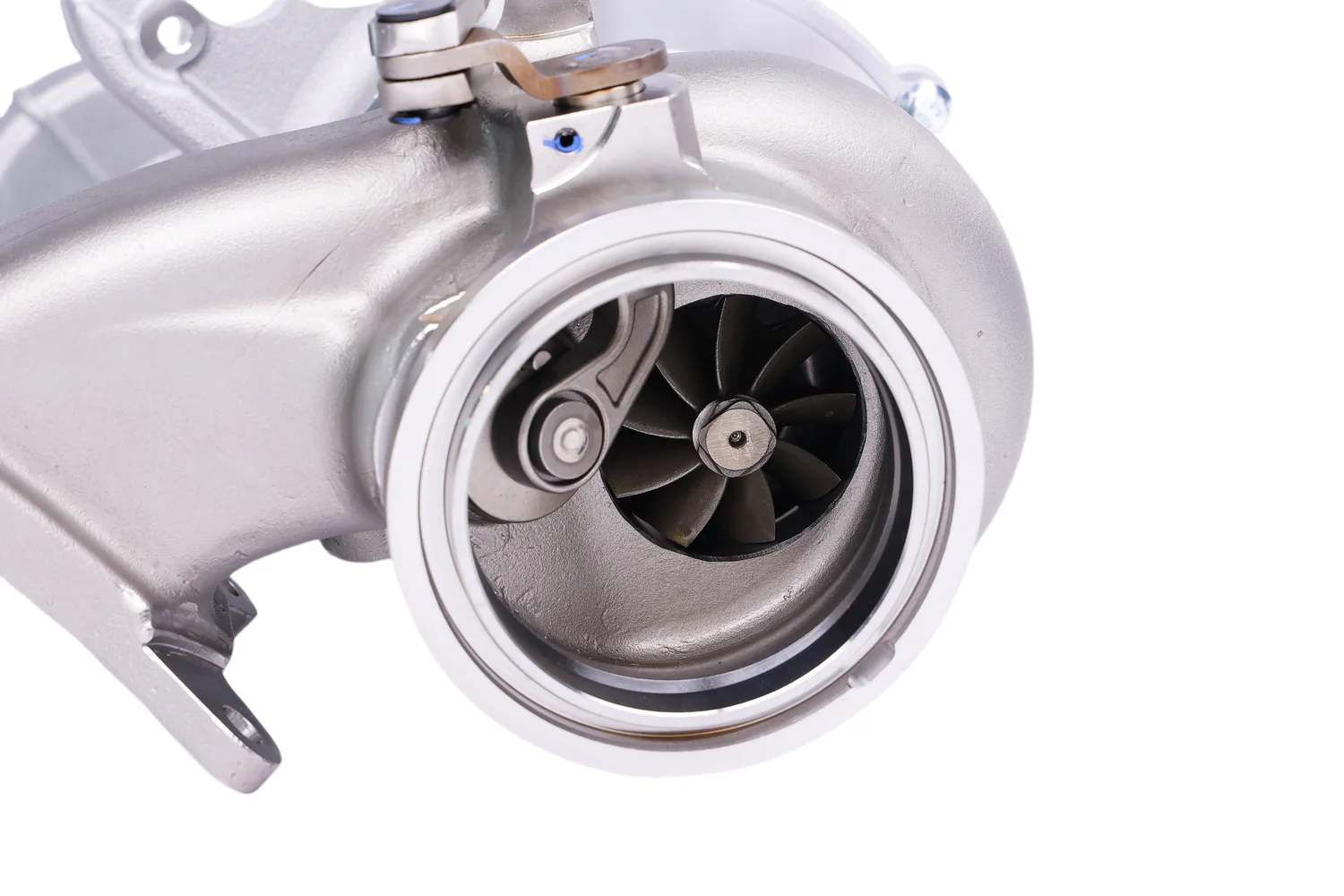

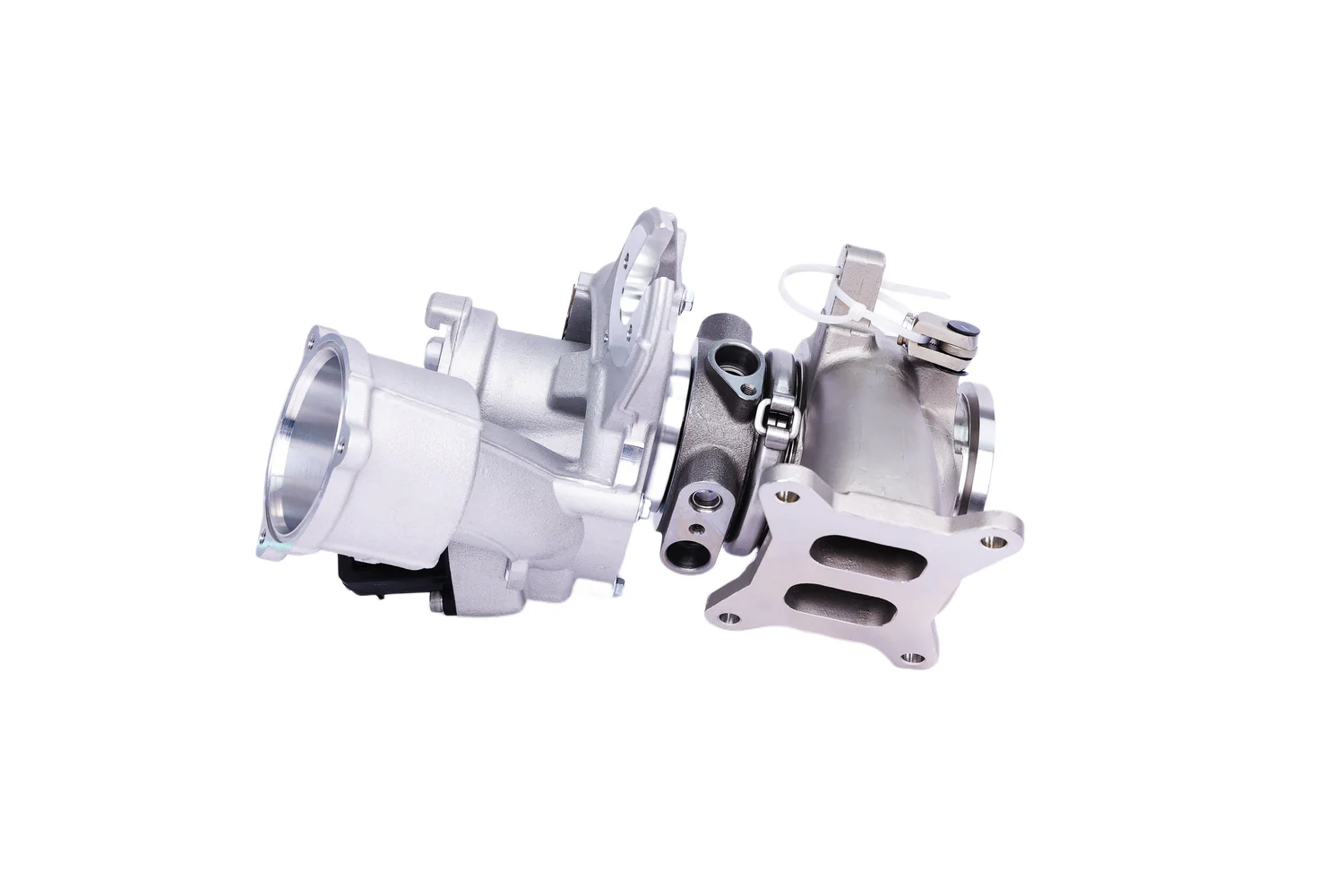

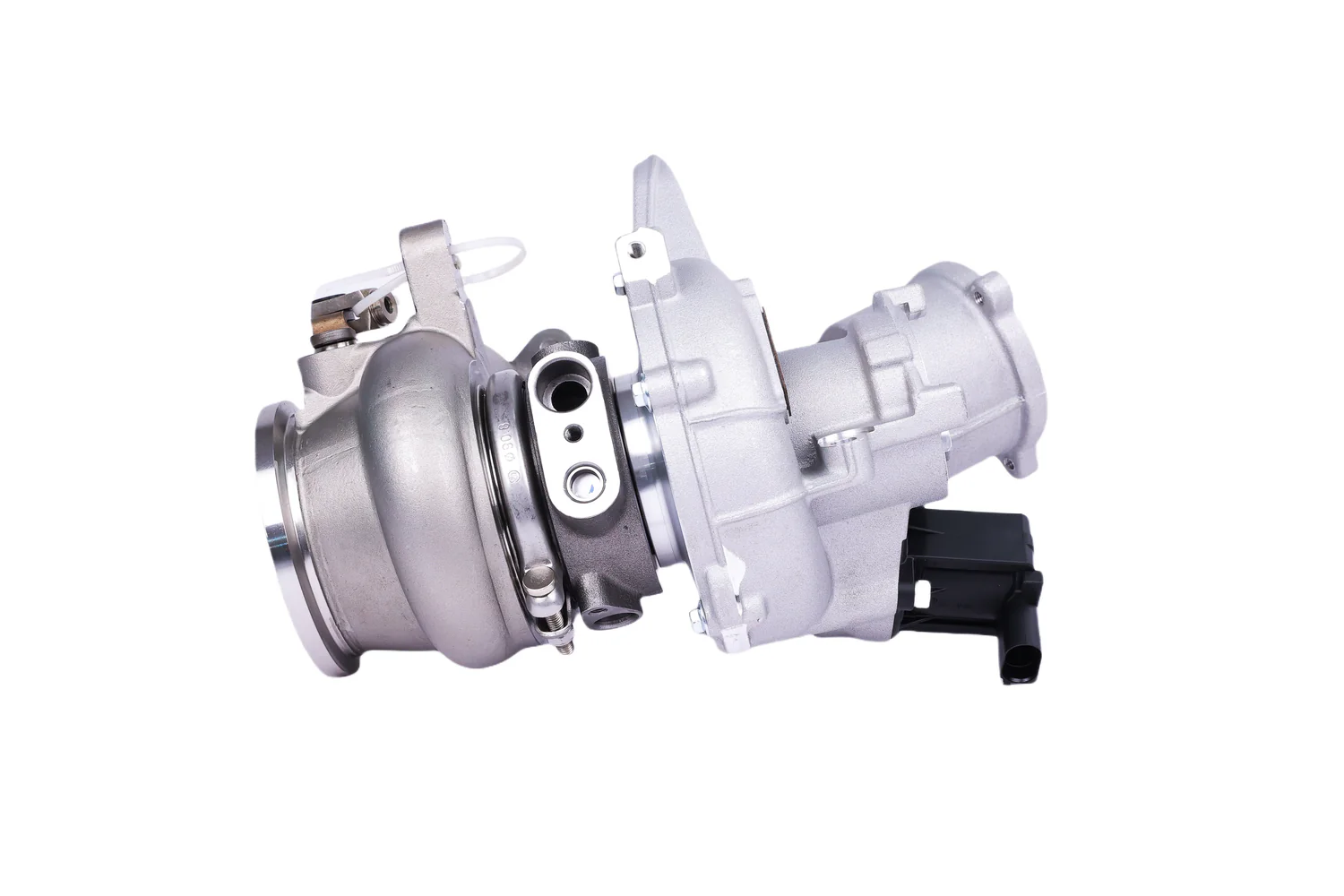

IS38 Hybrid EM25-550,EM25-660,EM30-770 BALL BEARING UPGRADE TURBOCHARGER For MQB 2.0T EA888.3

The IS38 Hybrid EM25-550,EM25-660,EM30-770 turbocharger are compatible with EA888 Gen3 engine(GOLF R/GTI/PASSAT/CC/A3/S3/TT/ TTS/ …) and it can reach a horsepower range of 450-770HP.

Features & Specifications:

✔Hybrid EM25-550:

• Direct bolt-on:
• Compressor Wheel Material：Billet
• Exhaust Housing Material：STAINLESS STEEL
• Compressor Wheel Inducer/Exducer:48/ 60mm
• Turbine Wheel Inducer/Exducer:54/ 49mm
• Center Cartridge Ball Bearing
• Actuator：Optional
• Max Horsepower Range：450hp – 550hp
• Software recalibration is required– check with your tuning software provider
• Vibration sort rig (VSR) balanced turbocharger center housing rotating assembly (CHRA)

✔Hybrid EM25-660:

• Direct bolt-on
• Compressor Wheel Material：Billet
• Exhaust Housing Material：Cast Iron
• Compressor Wheel Inducer/Exducer:54/ 67mm
• Turbine Wheel Inducer/Exducer:54/ 49mm
• Center Cartridge Ball Bearing
• Max Horsepower Range 500hp – 600hp
• Software recalibration is required– check with your tuning software provider
• Vibration sort rig (VSR) balanced turbocharger center housing rotating assembly (CHRA)

✔Hybrid EM30-770:

• Direct bolt-on
• Compressor Wheel Material：Billet
• Exhaust Housing Material：STAINLESS STEEL
• Compressor Wheel Inducer/Exducer:58/ 71mm
• Turbine Wheel Inducer/Exducer:60/ 55mm
• Center Cartridge Ball Bearing
• Actuator：Optional
• Max Horsepower Range：475hp – 770hp
• Software recalibration is required– check with your tuning software provider
• Vibration sort rig (VSR) balanced turbocharger center housing rotating assembly (CHRA)

Fitment:

Audi A3/S3/TT/TTS (EA888 Gen3)

Volkswagen GTI/Golf R/PASSAT/CC(EA888 Gen3)
